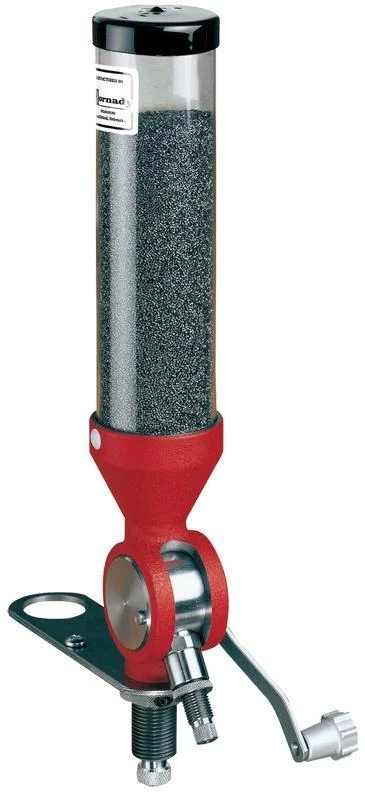

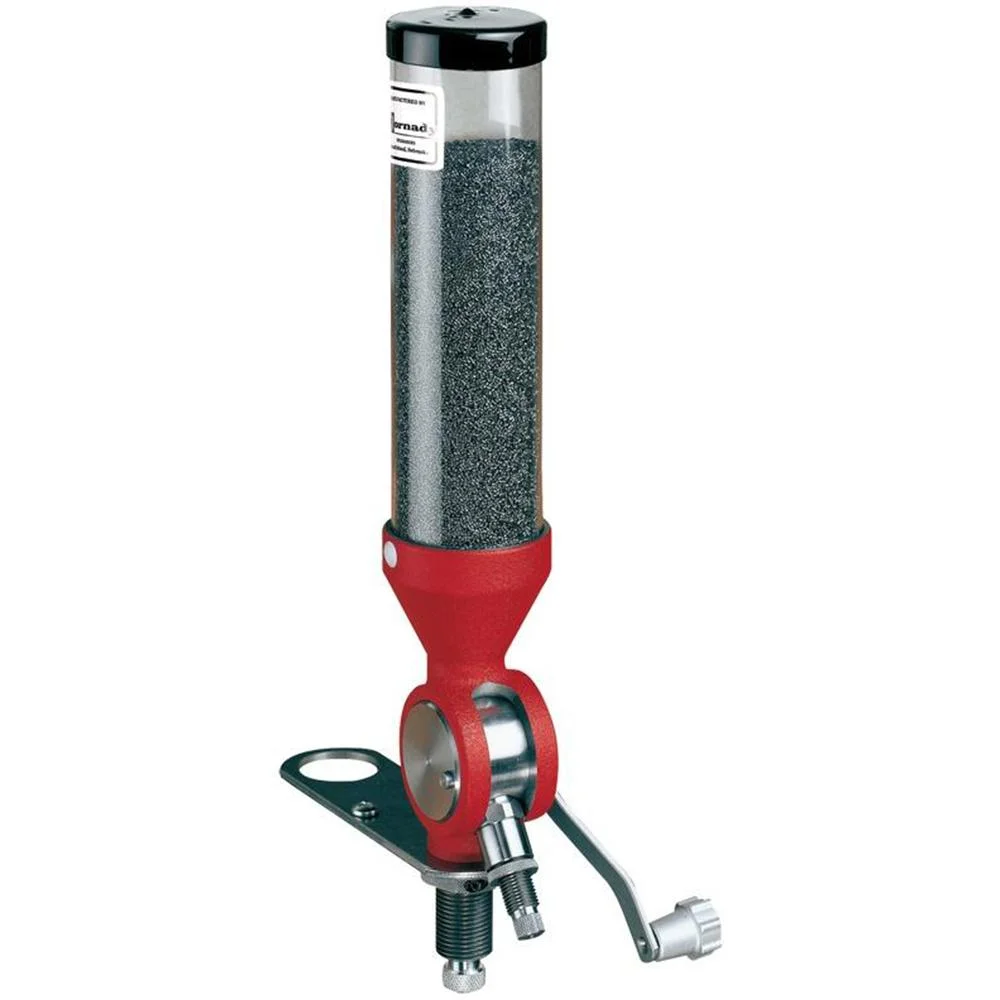

Hornady Lock-N-Load Powder Measure

The Hornady Lock-N-Load powder measure offers the most flexible operation and the widest range of any powder measure. It ranges from .5 – 265 grains of powder (special metering inserts and rotor required). Metering inserts can be changed with the push of a button. Comes with standard rotor and metering insert.

Go from .5 grain to 265 grains by simply changing rotor and inserts. Use one Lock-N-Load Powder Measure for reloading everything from small pistol cartridges to large magnum rifle cartridges.

TO CHANGE METERING INSERTS JUST PUSH THE LOCK-N-LOAD INSERT RELEASE BUTTON AND INSERT ANOTHER METERING INSERT. SIMPLY VERIFY THE NEW CHARGE AND YOU'RE RELOADING AGAIN RIGHT AWAY. INSERTS CAN BE SWAPPED IN SECONDS. GO FROM RELOADING 30-06 TO 45 AUTO IN NO TIME. KEEP THE PRESET INSERTS WITH YOUR DIE SETS.

With only .002" clearance between the drum and rotor it's the tightest in the industry for a standard measure. This tight tolerance helps eliminate powder binding between the frame and drum delivering smooth function with all types of propellant – extruded or ball.

Mount to your bench using a standard mounting bracket and lock ring or use our Lock-N-Load bushings to mount this versatile measure on the Fast Load Powder Measure Stand or on the Lock-N-Load AP with case activated powder drop for automatic powder measuring during reloading.

THE O – RING ON THE METERING INSERT ADJUSTMENT LETS YOU PUT A SLIGHT AMOUNT OF TENSION ON THE METERING UNIT TO MAKE FINE INCREMENTAL ADJUSTMENTS. ONCE YOU'VE SET YOUR CHARGE TIGHTEN THE LOCK RING TO SECURE THE SETTING.

THESE TUBES SPEED UP POWDER FLOW. TWO DROP TUBES ARE PROVIDED STANDARD FOR .204 TO 45 CALIBER LOADS. USE THE LARGEST DROP TUBE THAT FITS THE CASE MOUTH. AN OPTIONAL EXTENDED DROP TUBE IS ALSO AVAILABLE.
